Power Amplifier
- Number of Powered Channels 9
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 110 W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 150 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 220 W
- 70% Guarantee Yes
- Discrete Power Amplifier Yes
- Amplifier Topology Class A/B
- Current Feedback Topology Yes
- Bi-Amp Drive assignable
Multichannel Surround Technologies
- DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
- Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo
- Max Number of Processing (Preamp) Channels 11.4

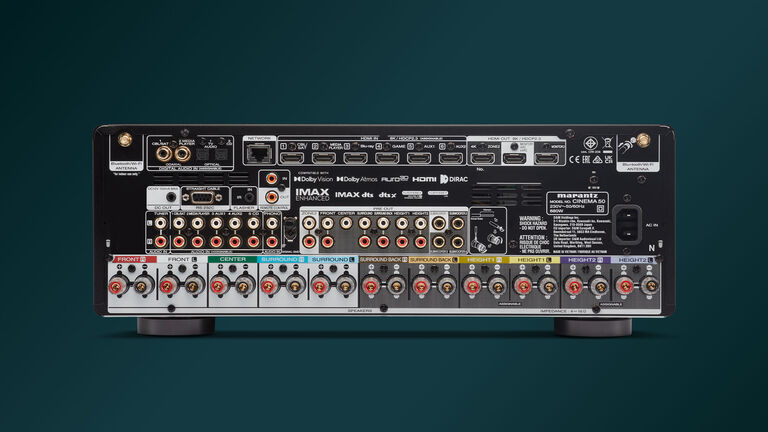

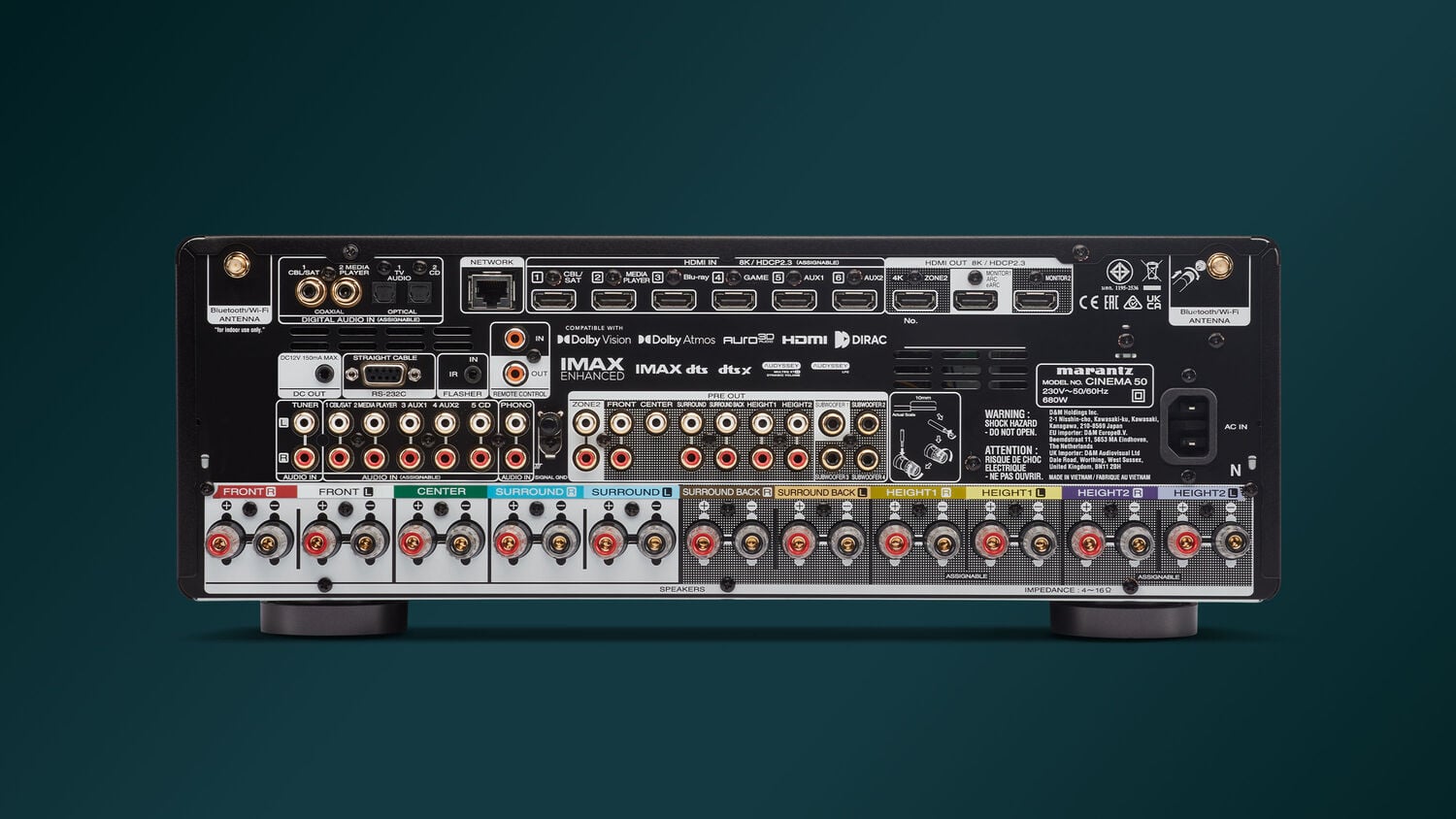

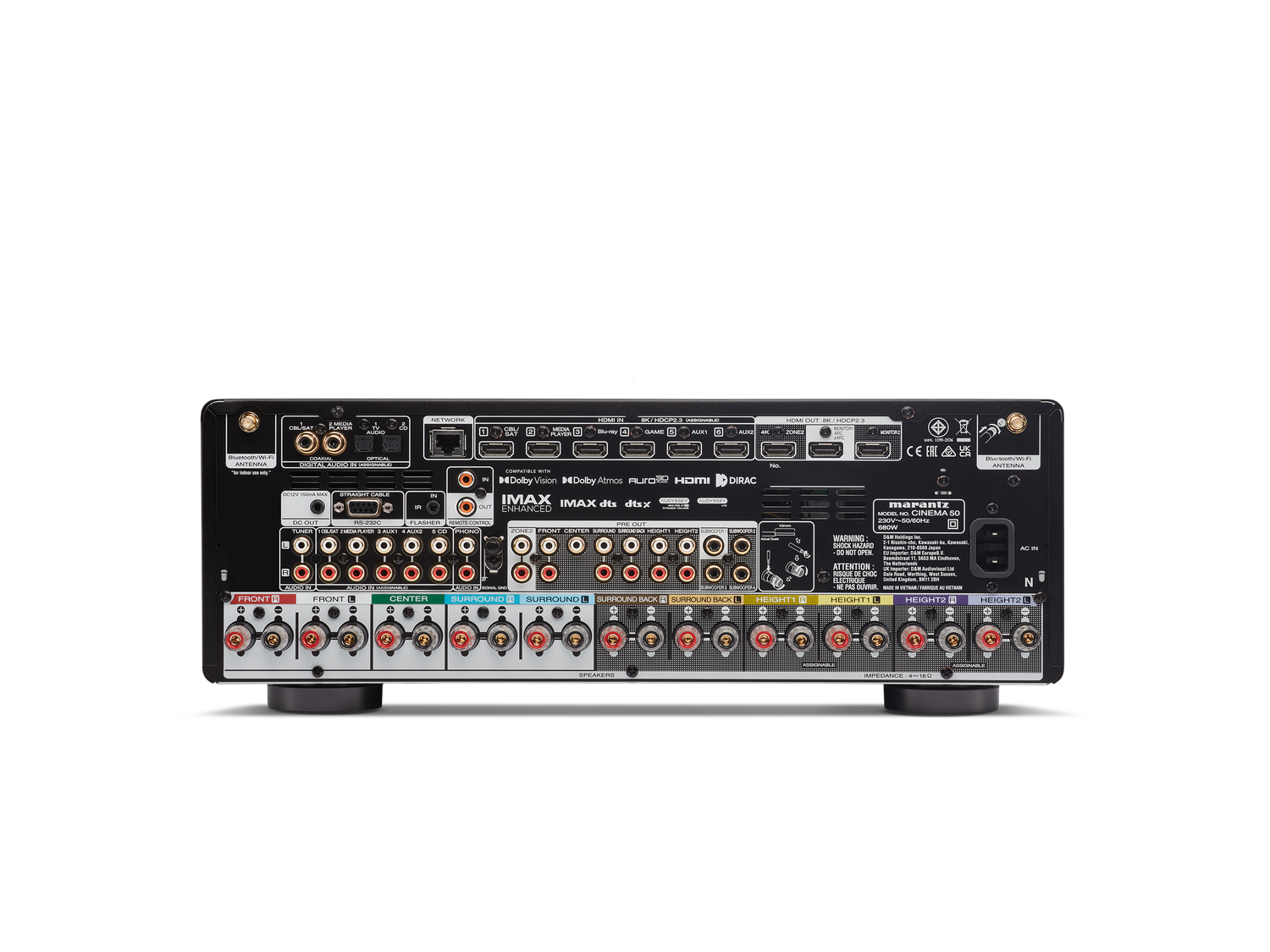

Inputs Outputs
- Composite In / Out 0/0
- Component In / Out 0/0
- HDMI In / Out 6 / 3
- Multi-Room Video Out via HDMI Yes
- Analog In / Fixed Level Out 5 in / 0 out
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-Room Out: analog / digital 1 /0
- Multichannel Preamp Out 11.4
- Subwoofer Out 4 (independent)
- 7.1 multichannel input No
- Number of Speaker Terminals 11
- Speaker A / B assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs USB-A
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- AM/FM Tuner No
- USB Audio Yes
HDMI
- Total HDMI Inputs / No. Support 8K 6 / 6
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- Analog to HDMI Video Conversion No
- HDMI Upscaling 1080P/4K to 8K
- Max resolution @ framerate 8K/60Hz, 4K/120Hz
- Audio Return Channel ARC, eARC
- Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes
- HDMI Pass-Through in Standby Mode Yes
- CEC Yes
- DSD Audio over HDMI Yes
- Auto LipSync Yes
Performance Technologies
- Copper Plated Chassis No
- Toroidal Power Supply Transformer No
- Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
- Pure Direct Mode Yes
- Gold Plated RCA Terminals Yes
- Clock Jitter Reducer Yes
Acoustic Room Correction
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes / Yes
- Dirac Live Upgradability Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
Music File Support
- Lossy Formats MP3 / WMA / AAC
- Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD Audio 2.8 MHz / 5.6MHz
- Gapless Playback FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2 Yes
- Network Audio Sharing Yes
Streaming Services
- HEOS Multi-room and Streaming Yes
- AirPlay Audio Streaming AirPlay 2
- Internet Radio TuneIn
- Spotify* Spotify Connect
- Pandora No
- SiriusXM Yes
-
Other Streaming Services *
Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix - Roon tested Yes
Network Connectivity
- Ethernet Ports Yes
- Wi-Fi (include version / band) Yes
- Bluetooth (Include version) Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
- Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source Yes
- Control Connectivity IP Control / RS232 Control / Web Control / App Control
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Output 1
- HDMI Diagnostics Yes
Others

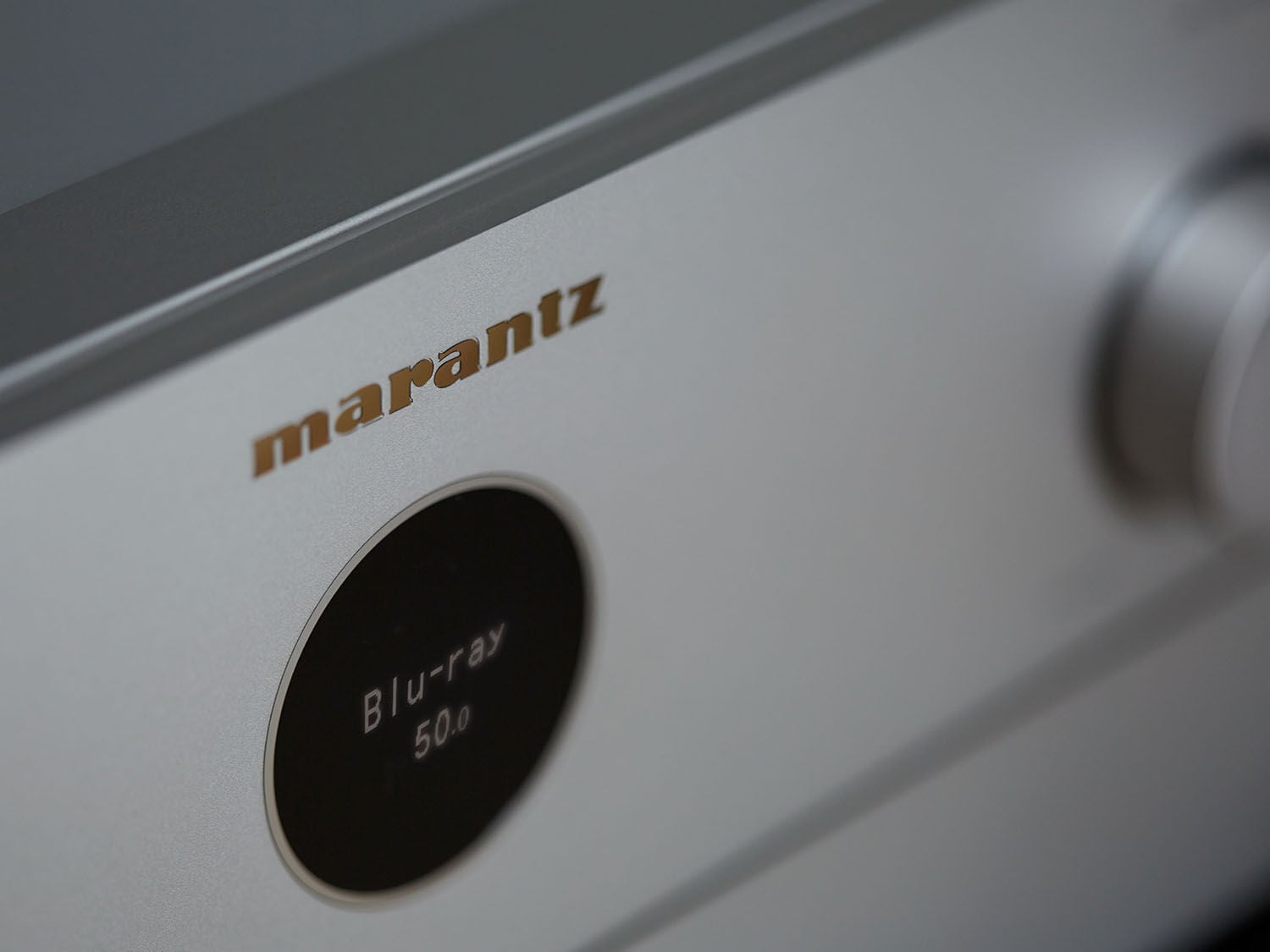

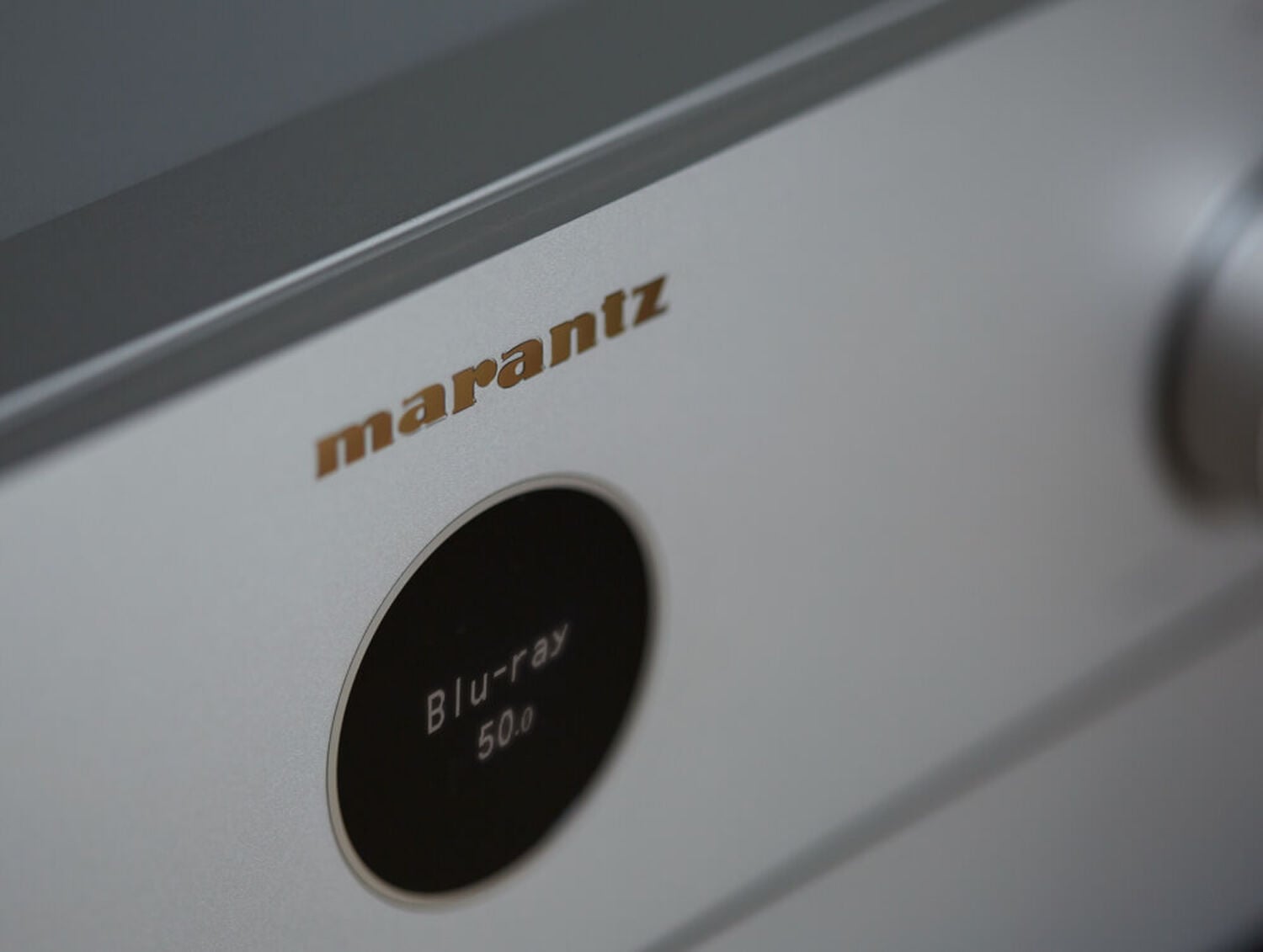

- Front Display port hole OLED
- GUI Languages 3
- Setup Assistant Yes
- Smart Select on Remote Yes
- Firmware Update by Network / USB Yes / Yes
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes
General
- Availabe colours Black
- Metal Front Panel Yes
- System Remote Control RC049SR
- Power Consumption in W 680
- Power Consumption No-Sound (ECO on/off) in W 60 / 100
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 442 x 404 x 165
(442 x 404 x 235)
【 442 x 392 x 165 】 - Weight in kg 13.5
- What's in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
