Multichannel Surround
- DTS HD Master / DTS:X Yes / Yes
- DTS Neo:X / DTS Neural:X No / Yes
- DTS Virtual:X Yes (update)
- Dolby TrueHD / Dolby Atmos Yes / Yes
- Dolby ProLogic Il / Dolby Surround No / Yes
- Auro 3D Yes
- Multichannel Stereo Yes
- Max Number of Processing (Preamp) Channels 13.2
- IMAX Enhanced Yes
Sound Enhancements
- Copper Plated Chassis Yes

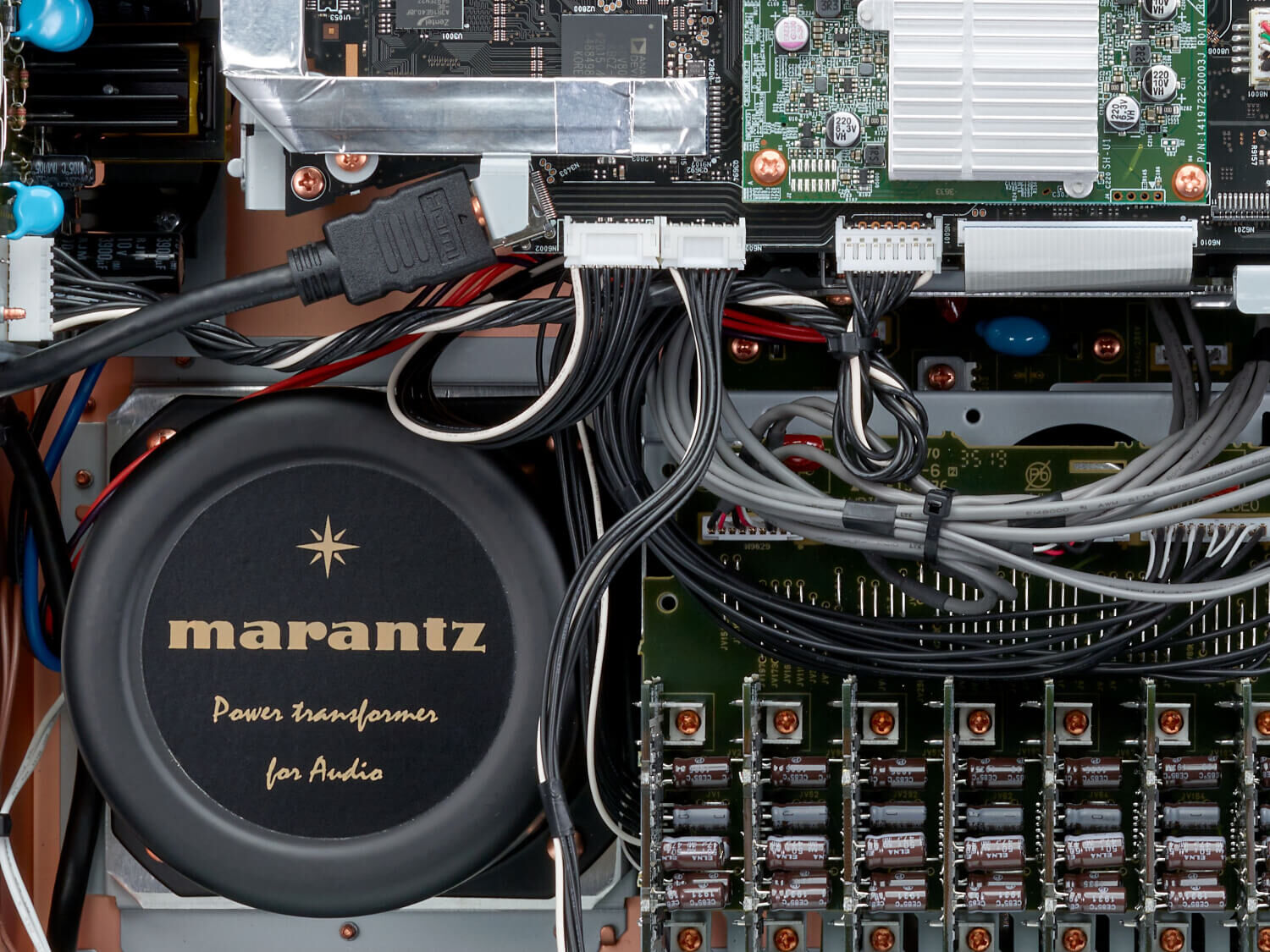

- Power Transformer: Toroidal / EI Yes / No
- Current Feedback Topology Yes
- Hyper Dynamic Amplifier Modules (HDAM) Yes
- Pure Direct Yes
- High Grade Audio Components Yes
- Gold plated RCA terminals Yes
- Clock Jitter Reducer Yes
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes
- Audyssey APP Support Yes
- Compressed Audio Enhancer: MDAX2 Yes
Network
- HEOS Multi-room and Streaming Yes
- Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
- Lossless formats FLAC / ALAC / WAV Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- DSD Audio Streaming up to DSD5.6
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
- AirPlay Audio Streaming Yes
- Internet radio TuneIn
- Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
- Compatible with Remote APP for Smart Phones Android / iOS
- Compatible with Remote APP for Tablets Yes Amazon Kindle
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes

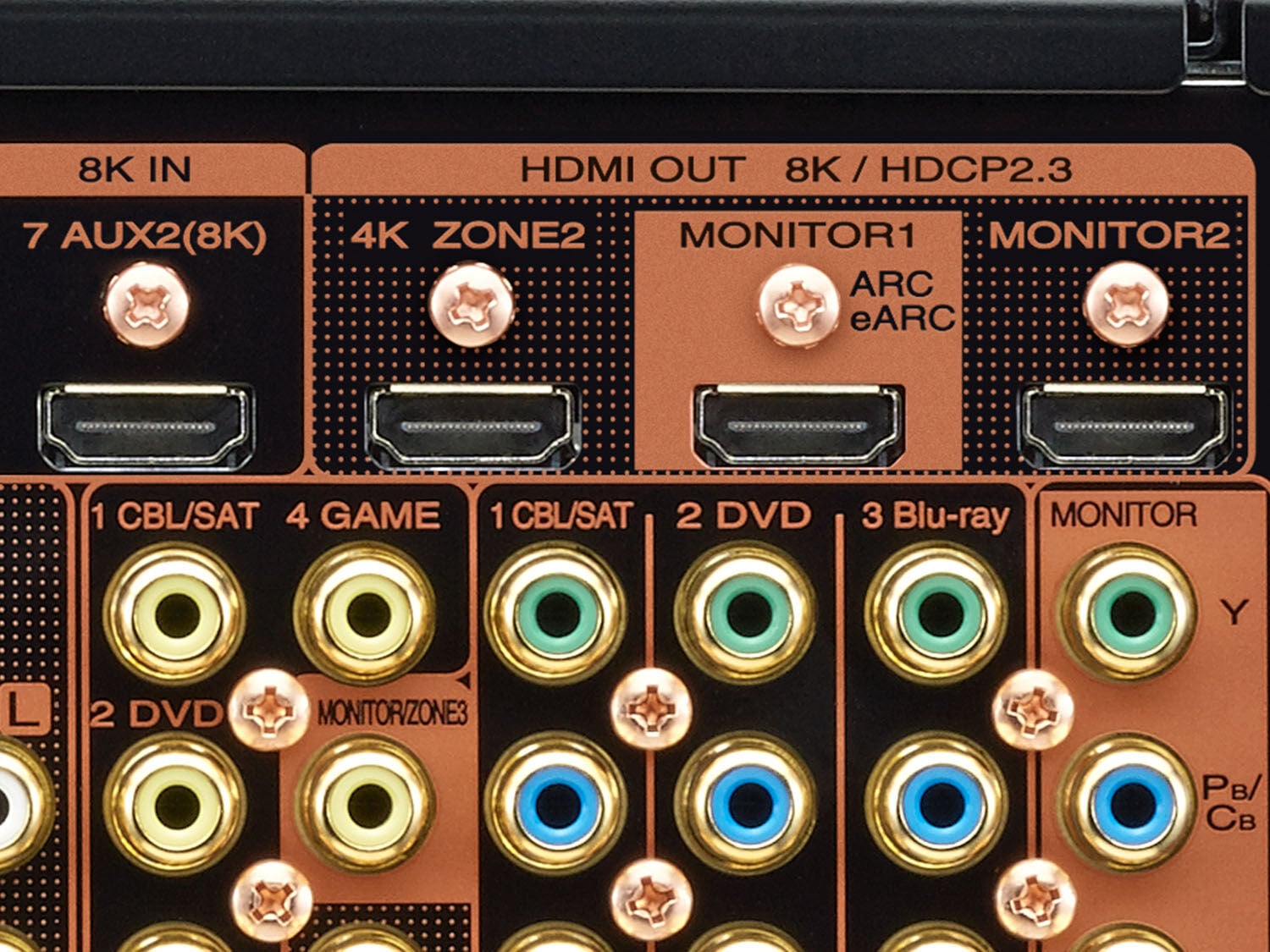

HDMI
- HDMI Inputs: Back / Front 7 / 1
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- HDMI max Resolution (8k / 4k) 8k/60 - 4k/120
- Video Conversion Analog -> HDMI Yes
- HDMI to HDMI Scaling up to 8K 60/50
- HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
- HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
- HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
- HDMI Pass-Through in Standby Mode Yes
- DSD Audio Capability Yes
Multi-Room CI
- HEOS Multi-Room Integrated Yes
- Multi-Room Zones 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout No / Yes
- Zone HDMI Output from HDMI Source Yes
- IP Control / RS232 Control / Web Control / App Control Yes / Yes / No / Yes
- Remote In / Out Yes
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Output 2
Others
- Auto Speaker Setup by Microphone Audyssey MultEQ XT32
- FL Display 2 lines + port hole
- Graphic User Interface - GUI Advanced
- ISF Certification Yes
- GUI Languages 9
- Setup Assistant Yes
- Smart Select Yes
- Firmware Update by Network / USB Yes / Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
- Auto Power off Yes
- Sleep Timer Yes

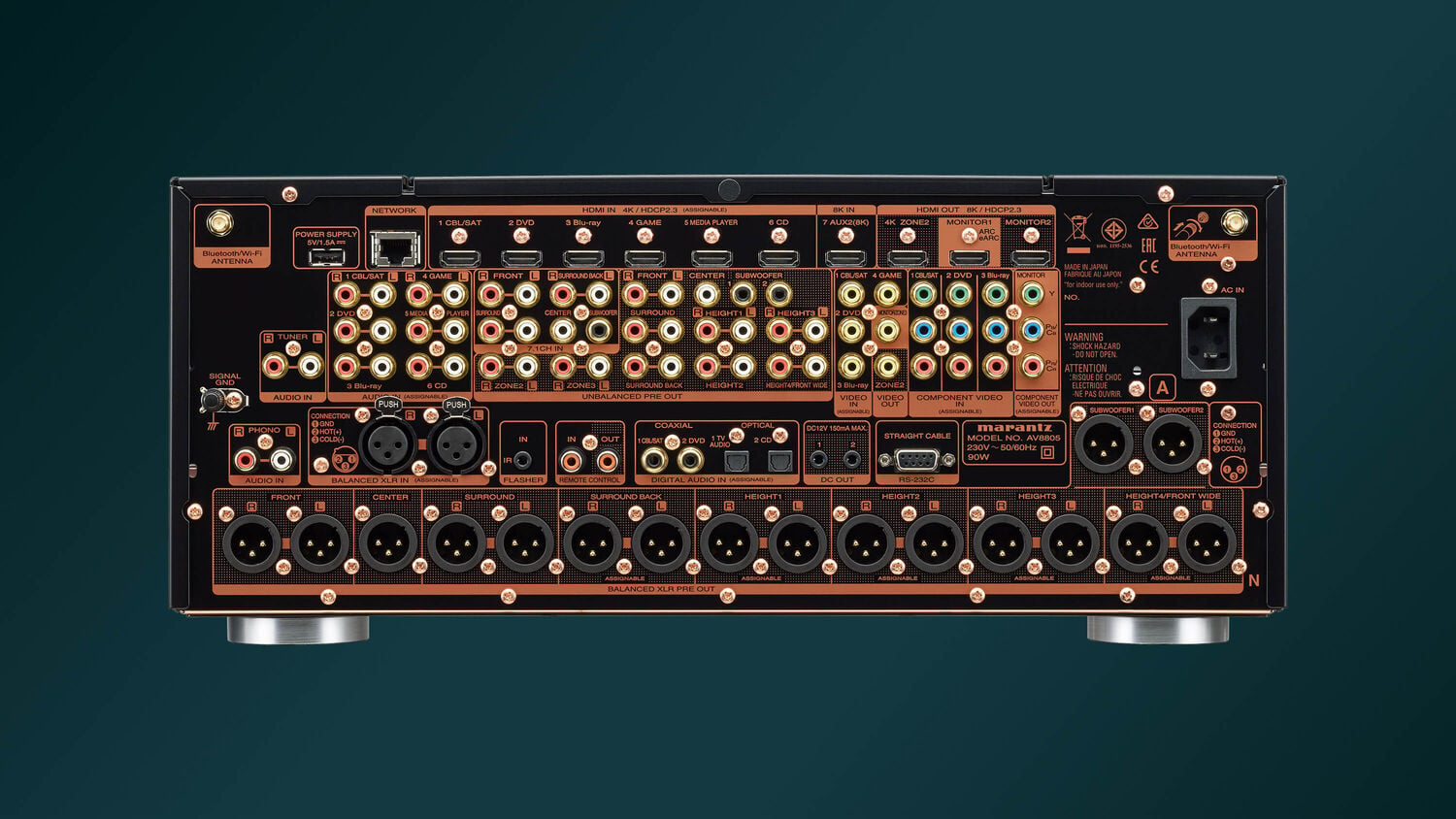

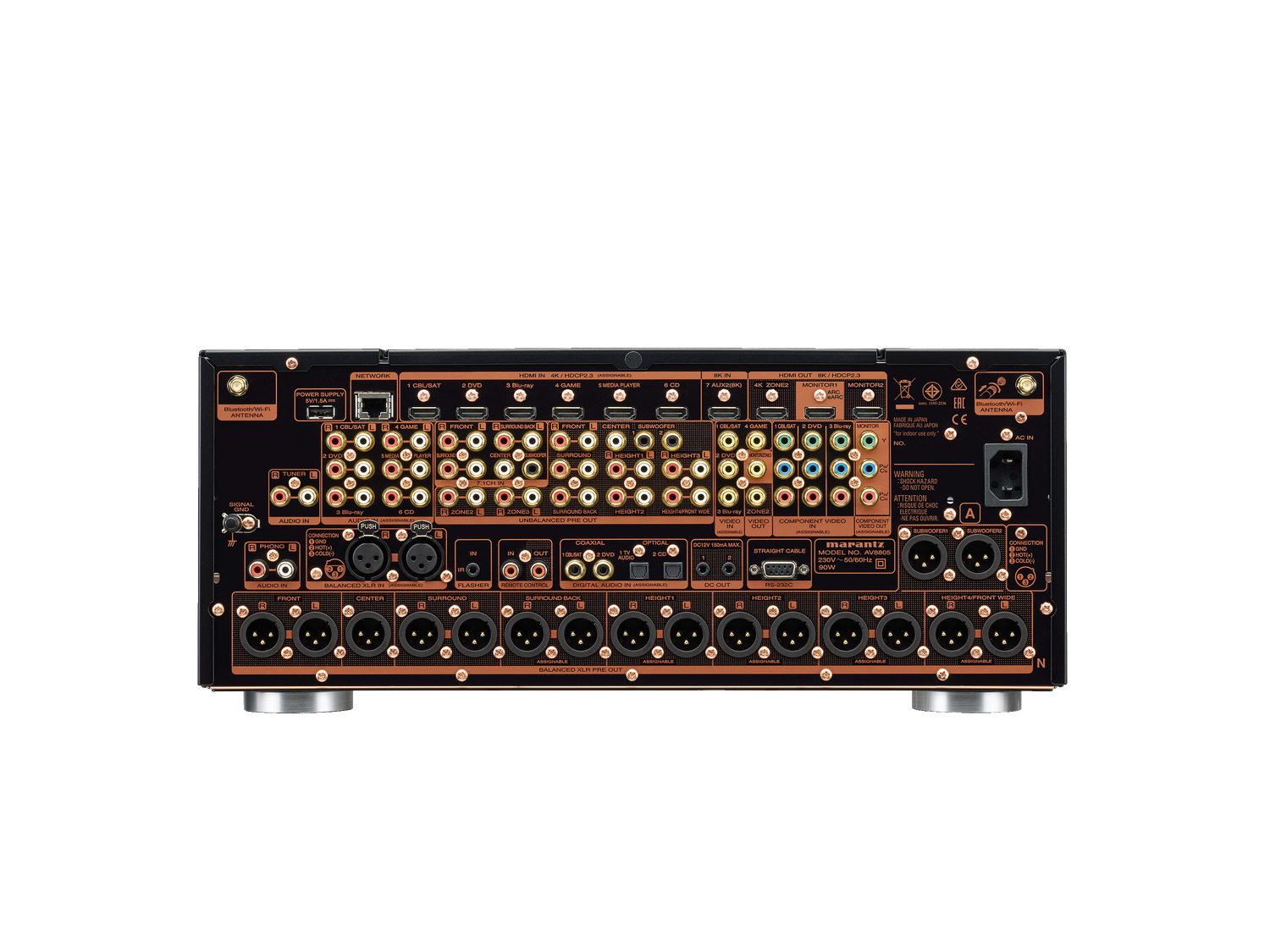

Inputs Outputs
- Composite In / Out 4+1 / 2
- Component In / Out 3 / 1
- HDMI In / Out 7+1 / 3
- Multi-Room Video Out: Video / HDMI Yes / Yes
- Analogue In / Out 6+1 (1x XLR) / No
- Phono (MM) In Yes
- Digital Inputs: Coaxial / Optical 2/2
- Multi-Room Out: analog / digital 2 / No
- Multichannel Pre Out Yes (15.2 RCA & 15.2 XLR)
- Subwoofer Out 2 (independant)
- 7.1 multichannel input Yes
- Speaker A / B assignable pre out
- Bi-amp drive assignable pre out
- Multi-Room Speaker Terminal pre out
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / Yes / Yes
- USB Audio / Made for iPod / Works with iPhone Yes / AirPlay / AirPlay
General
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / No
- Metal Front Panel Yes
- System Remote Control RC039SR
- Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
- Power Consumption in W 90
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Control On Consumption in W 3.7
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 440 x 410 x 185
( 440 x 410 x 248 )
【 440 x 389 x 185 】 - Weight in kg 13.7
