Features
- Channels 5
- Current Feedback Topology Yes
- Phono EQ: Standard / Current Feedback / Constant Current Feedback No / No / No
- HDAM version No
- Power Transformer: Toroidal / El No / Yes
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout No
- Aluminium extrusion heat sink Yes
- Copper Plated Chassis No
- Tri Tone Control (Bass / Mid / Treble) No
- Balance / Bass / Treble / Loudness No
Others
- Linear Drive Power Supply Yes
- CCNE No
- Liniear volume control No
- BTL Possibility No
- BI-AMP and Multichannel option No
- Choke input No
- Shottky diodes No
- Input buffer amp (all inputs / CD only) Yes / No
- Separate Solid Heat Sinks No
- System block shielding: Copper / metal / none No / No / No
- Double Layer Bottom Plate No
- Low noise LCD display Yes
- Low noise LED display No
- Power Meter : Analog / Digital No / Yes
- Source Direct No
- Power Amp direct Yes
- Standby Mode Yes
- 5mm aluminium top plate No

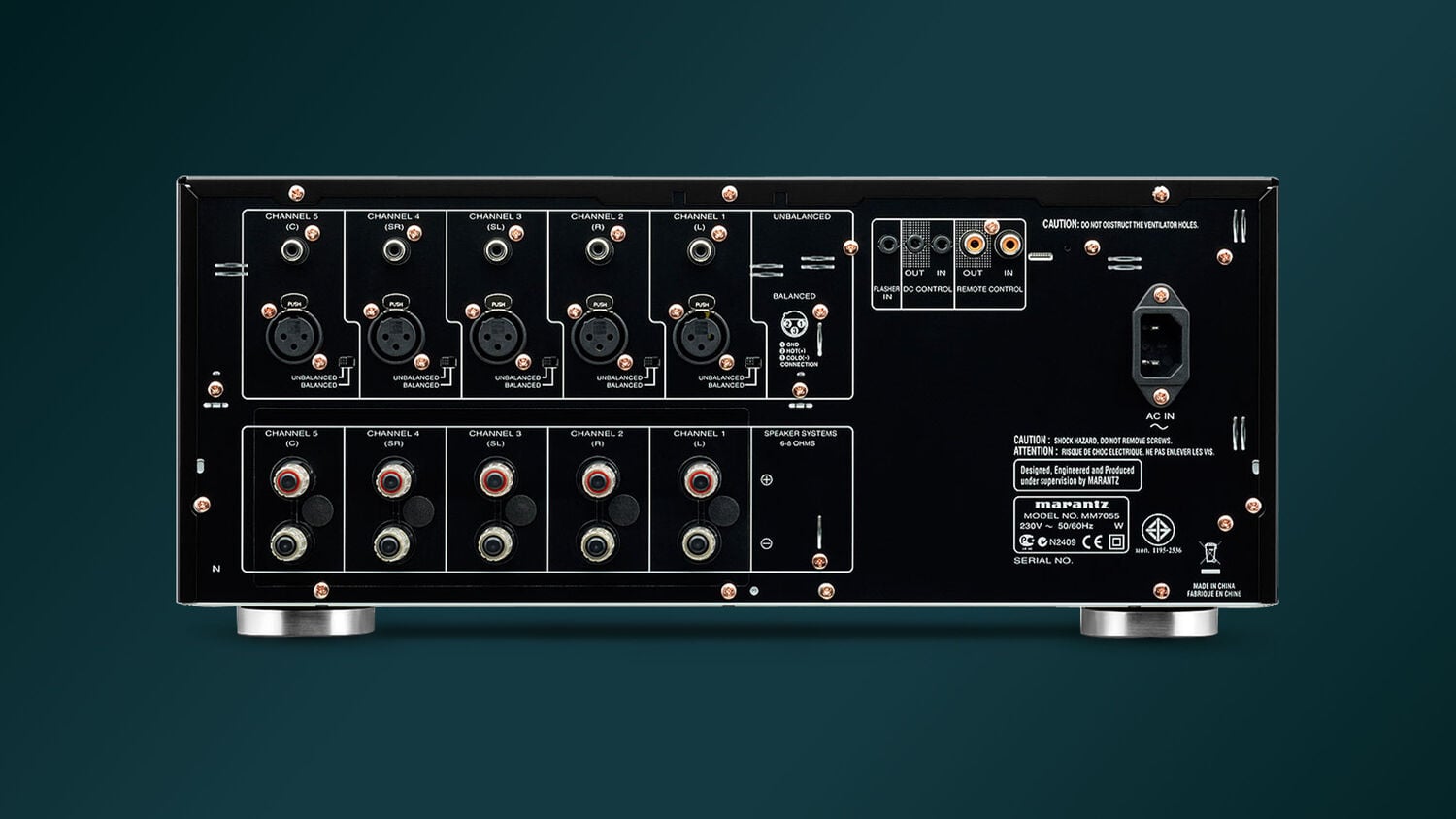

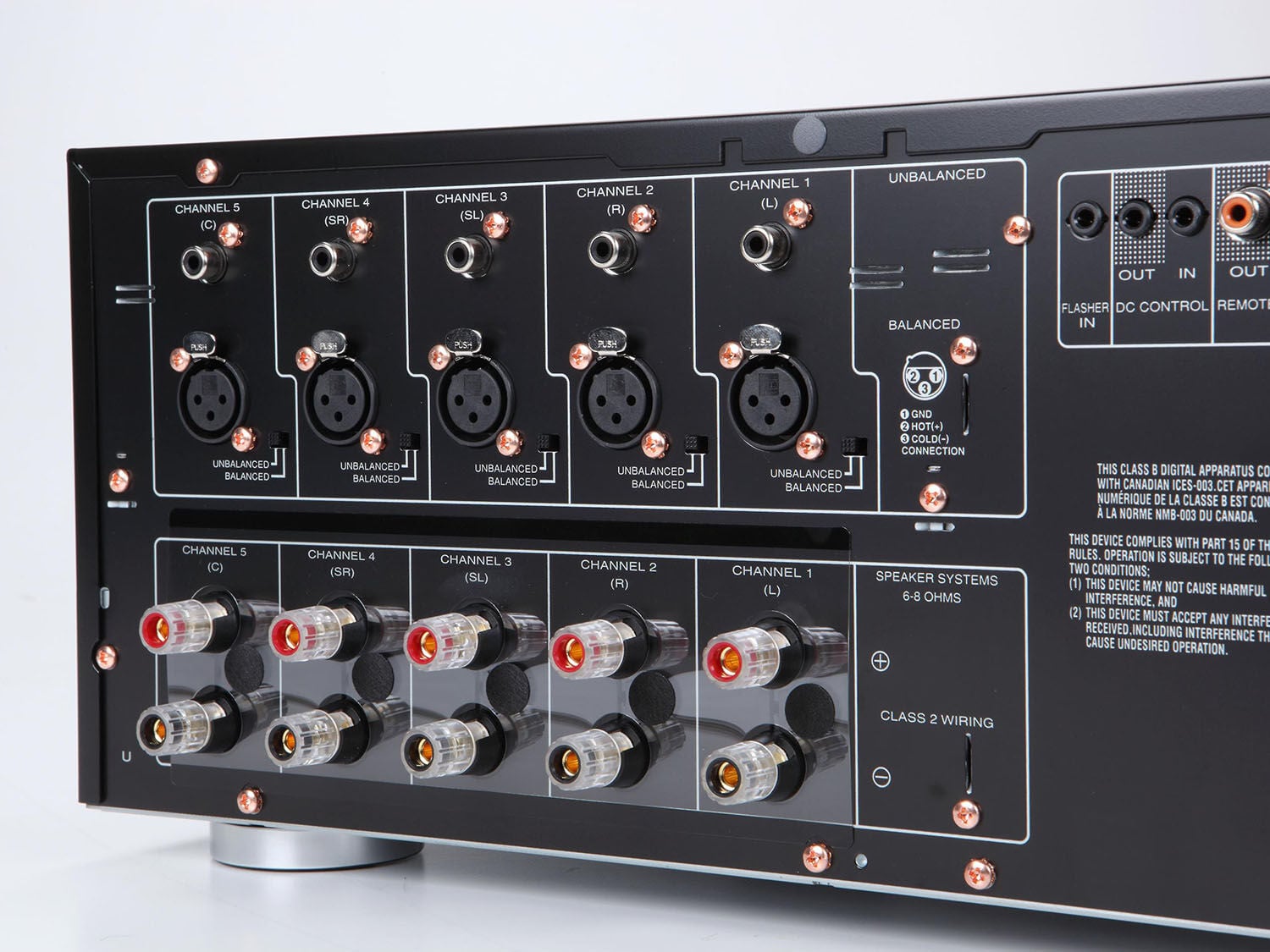

Inputs Outputs
- Audio Inputs No
- Phono Input: MM / MC No
- Audio Outputs No
- Balanced In / Out 5 / No
- Pre-out / Main-in No / 5
- Power Amp Direct IN No
- Gold Plated Cinch No
- Speaker A / B No
- Speaker Terminal: Screw / Marantz / WBT Yes / No / No
- Number of terminals 5
- D-Bus Yes
- Floating Control Bus (3.5 mm mono jack x 2) No
- Remote Power Control Trigger - In Out Yes
- Flasher In / IR Receiver In Yes / No
- Headphone Out No
- iPod input (direct / docking station) No / No
Specifications
- Power Output (8 / 4 Ohm RMS) 140 W / 170 W (6)
- Power Output (8 / 4 Ohm DIN) No
- Power Output (8 / 4 Ohm IHF) No
- Bridged Power Output (8 Ohm RMS) No
- Frequency response 8 Hz-100 kHz (+-3 dB)
- Total Harmonic Distortion 0.03% (20 Hz - 20 kHz)
- Damping Factor 100
- Input Sensitivity: MM No
- Input Sensitivity: MC No
- Signal to Noise Ratio: MM/MC No
- Input Sensitivity: High level 1.2 V / 22 K
- Input Sensitivity: Balanced High level 2.4 V / 30 K
- Signal to Noise Ratio: High level 105 dB
General
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / No
- Metal Front Panel Yes
- Power Consumption in W 400
- Standby Consumption in W 0.4
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control No
- System Remote Function No
- Maximum Dimensions (W x D x H) in mm 440 x 183 x 384
- Weight in kg 15.2
