Marantz is putting out some amazing products in 2020 with their SR series receivers. If this is any indication of what products like the MODEL 30 and SACD 30n are going to be like then Marantz should have a spectacular year full of products for us.
Output Power
-
Rated Output Power
100W + 100W (8ohm)
200W + 200W (4ohm) - JEITA Power output No
Features
-
Amplifier Circuit
Switching Amp
(Hypex NC500/SMPS600
by single) - Power Trans Toroidal w/case
- Volume Electric
- Loudness No
- Bass / Treble / Mid / Balance Control yes / yes / No / yes
- REC Out Select No
- Source Direct yes
- Pure Direct No
- (Marantz) Purest Mode No
- Isolator (for USB-B input) No
- Jitter reducer No
- Dual Clock: 44.1 / 48 kHz No
- Digital Filter No
- Analog Amp Mode No
- Wide Range 5Hz - 50kHz
-
Total Harmonic Distortion
0.005%
(1kHz, 8Ω) - Damping Factor 500
-
Input Sensitivity: Phono input
MM: 2.3 mV / 39 kohm
MC: 250 - Input Sensitivity: CD/Line/Recorder 220 mV / 13 kohm
- Input Sensitivity: Power Amplifier input 1.1 V / 13 kohm
-
SN Ratio
PHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB

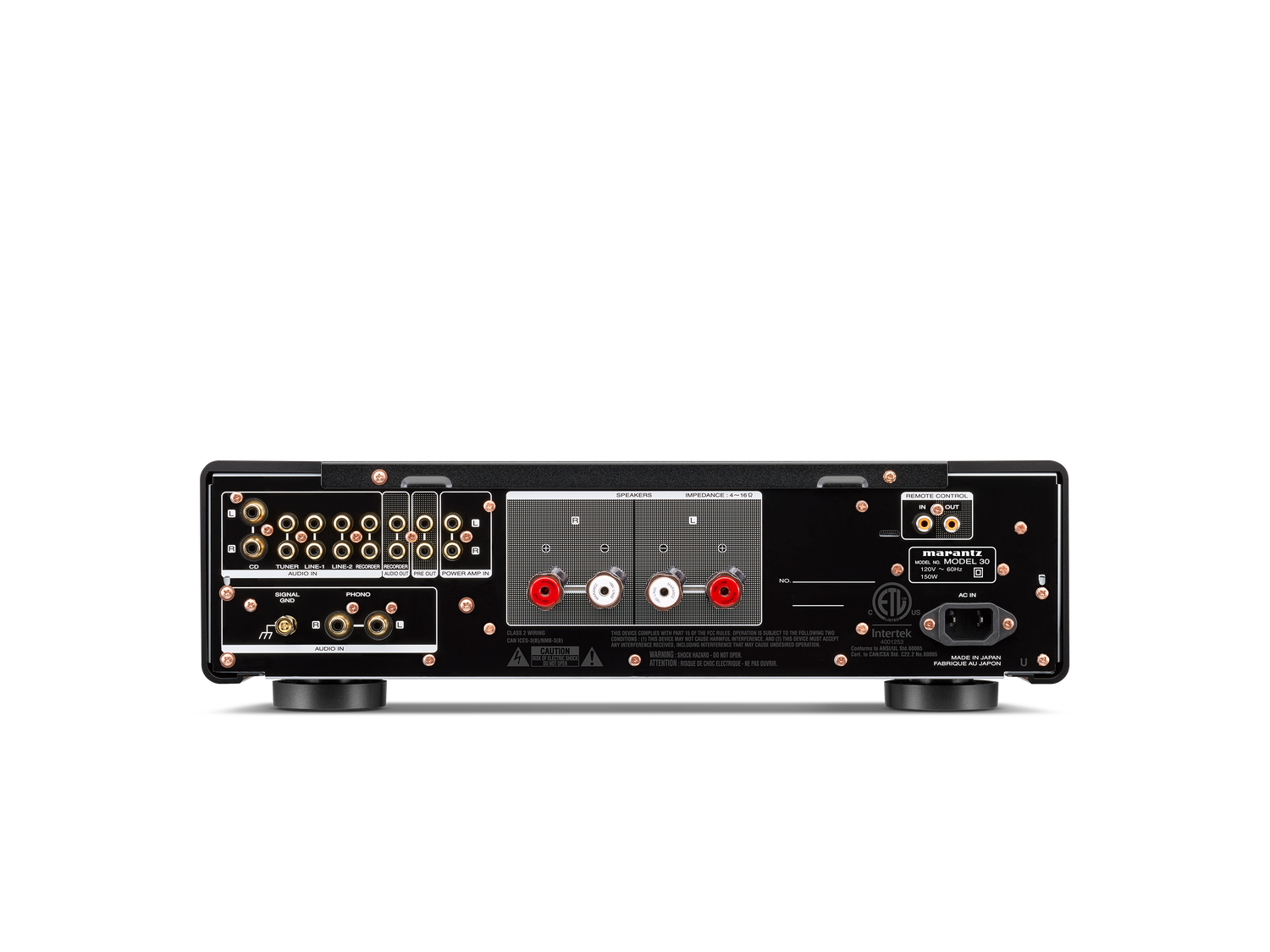

Terminal
- Phono Input yes (MM/MC)
- Ext. Pre Input (Power Amp Direct) yes
- Preout yes
-
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out
6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals. - Balanced XLR input No
- Rec-Out Selector No
- Optical input No
- Coaxial input No
- USB A No
- USB B No
- HDMI No
- DAC No
- 2 sets of Spk Terminal No
-
Speaker Terminal
Marantz Original
SPKT-100+ - Remote Control Bus Terminal yes (Cinch)
- NFC No
- Ethernet No
Network
- Engine No
- Computer music file streaming No
- Gapless Playback Music ServerUSB A No
- Internet radio No
- AirPlay 2 No
- GoogleCast No
- Album art browsing No
- Jpeg Picture Playback No
- Cloud Music Service No
- WPS Wi-Fi Protected Setup No
- Wi-Fi Sharing No
- WMM No
- OFF mode No
- OFF mode No
- Multi-Poimt No
UI
- Display yes (Porthole, OLED)
Control
- App Control via Network Player yes
-
System Remote Controller
yes
(New system remote controller to control SACD 30 and MODEL 30) - RS232C No
- Flasher Input No
- Trigger 12V No
- TV Auto-play (Opt/Coax digital-in sensor) No
Others
- Unit (W x H x D mm) 443 x 130 x 432
- Packaging Dimensions (W x H x D mm) 534 x 255 x 522
- Net weight 14.8kg
- Packaging gross weight 17.6kg
- Power Consumption 130W
- at Standby 0.2W
- at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB) No
- AC Inlet yes
- AC Outlet No
- Owner's Manual Web Manual
- Quick Start Guide Paper
- Chassis Material SECC
- Chassis Layer Triple
- Foot New
Cosmetic
- Panel Color SG / BK
- Front Center Panel Aluminum
- Back-shell No
- Side cover Aluminum
- Top Cover Steel
- Edge Lighting yes (Dimmer)
- Volume Knob Aluminum
- Input Selector Aluminum
- Bass/Treble/Balance/ REC Out Sel knobs REC Out-->PHONO (Aluminum)
- Speaker A/B button No
- Power button Aluminum
- Other knob/button (LOUDNESS, SOURCE DIRECT etc) No
- Side screw Copper plated
