Power Amplifier
- Number of Powered Channels 2
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150 W
- Discrete Power Amplifier Yes
- Amplifier Topology Class A/B

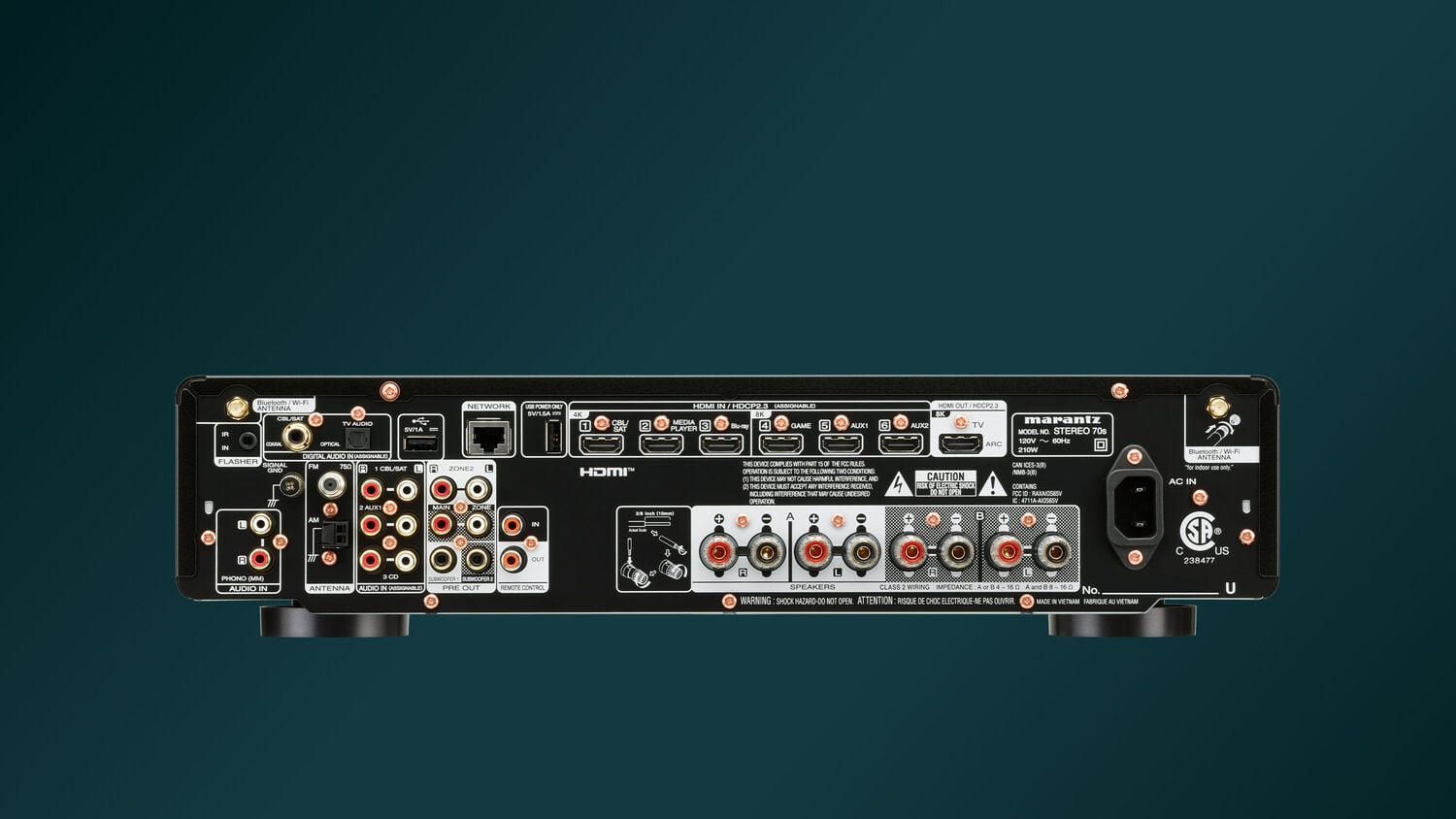

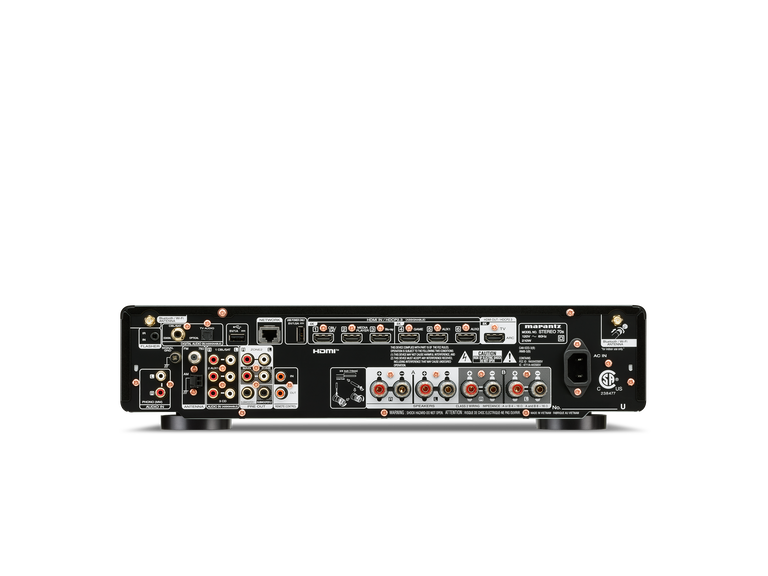

Inputs Outputs
- HDMI In / Out 6 / 1
- Analog In / Fixed Level Out 3 in / out
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 1 / 1
- Multi-Room Out: analog / digital 1 / 0
- Multichannel Preamp Out 2.2
- Subwoofer Out 2
- Number of Speaker Terminals 4
- Speaker A / B Yes
- USB Audio USB A (Host)
- AM/FM Tuner Yes
Multichannel Surround Technologies
- Max Number of Processing (Preamp) Channels 2,1

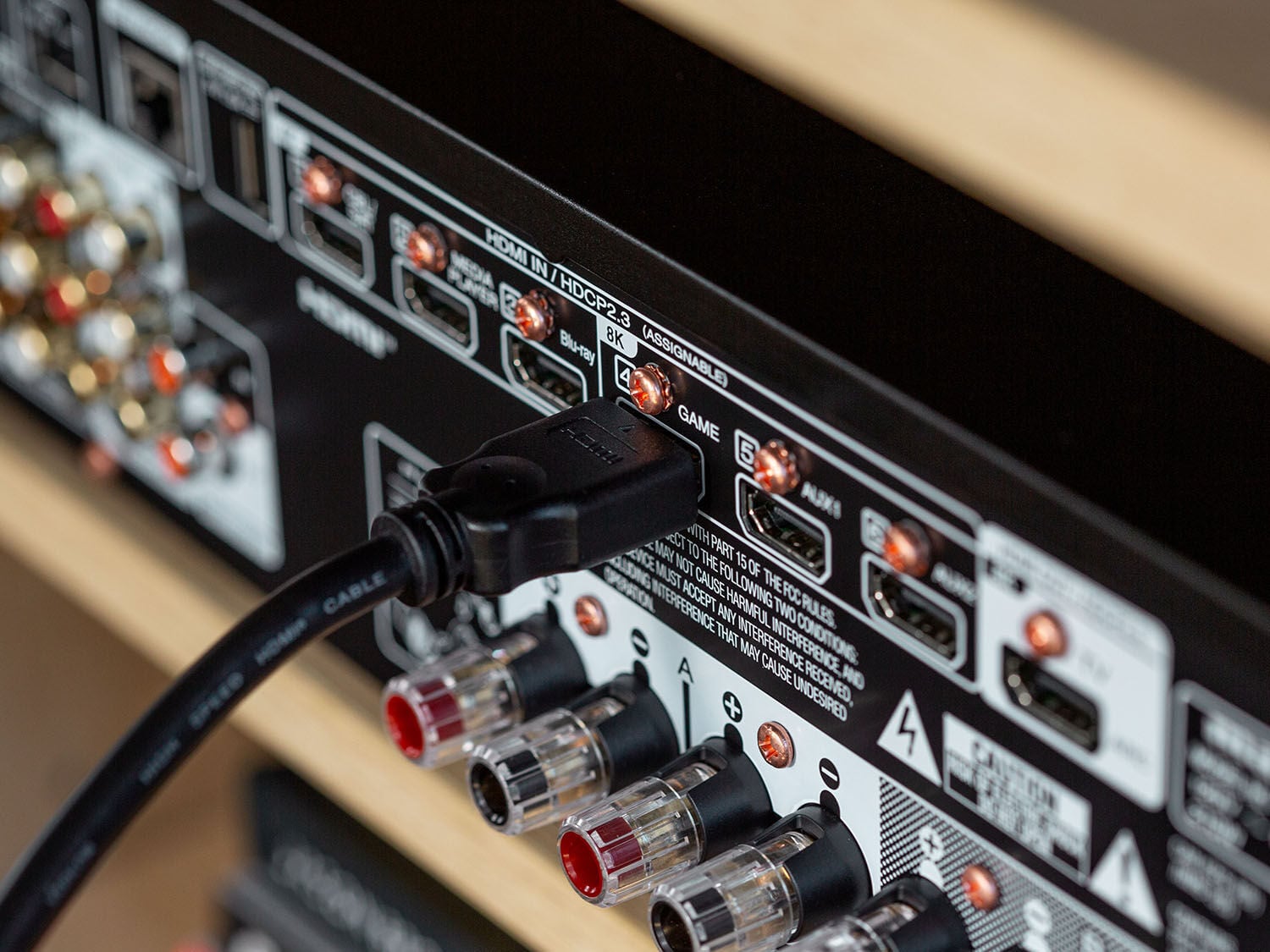

HDMI
- Total HDMI Inputs / No. Support 8K 6 / 3
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 1 / 0
- HDMI Upscaling 1080P/4K to 8K
- Audio Return Channel ARC
- Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes
- HDMI Pass-Through in Standby Mode Yes
Performance Technologies
- Pure Direct Mode Yes
- Gold Plated RCA Terminals Yes
- Hyper Dynamic Amplifier Modules (HDAM) Yes
Music File Support
- Lossy Formats MP3 / WMA / AAC
- Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD Audio 2.8 MHz / 5.6MHz
- Gapless Playback FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2 Yes
- Network Audio Sharing Yes
Streaming Services
- HEOS Multi-room and Streaming Yes
- AirPlay Audio Streaming AirPlay2
- Internet Radio TuneIn
-
Spotify*
Spotify Connect
*availability of services might vary per region -
Other Streaming Services *
Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
*availability of services might vary per region - Roon tested Yes
- Pandora Yes
- SiriusXM Yes
Network Connectivity
- Ethernet Ports Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes (with volume control)
- Wi-Fi Yes
- Bluetooth Yes
Smart Home Integration and Control
- Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod / JoshAi
- App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room zones 1
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout No/Yes
- HDMI Diagnostics Yes
Others
- Front Display port hole OLED
- GUI Languages English, Spanish, French
- Setup Assistant Yes
- Smart Select on Remote Yes
- Firmware Update by Network / USB Yes / Yes
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes
General
- System Remote Control RC-052SR
- Power Consumption in W 210
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
【 w/o Antenna :(W x D x H) in inches 】:
【 17.4 x 14.7 x 4.3 】 - What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, 2 External Detachable Antenna, AC cord
- UPC code 747192140267
