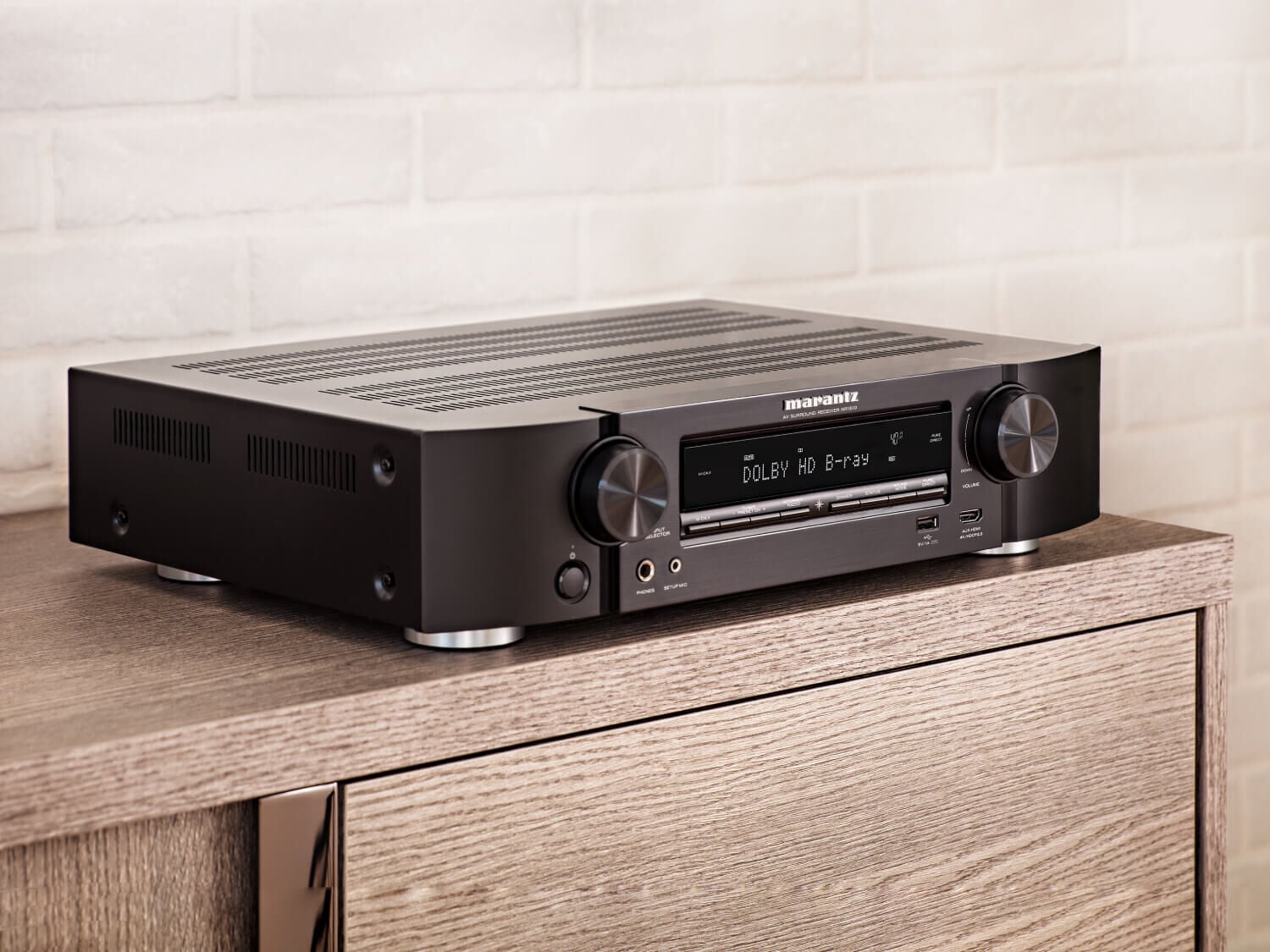

For years now, Marantz’s slimline receivers have been perennial favorites thanks to their compact form factor and impressive feature list.
Multichannel Surround
- DTS HD Master / DTS:X Yes / No
- DTS Neo:X / DTS Neural:X No / No
- DTS Virtual:X No
- Dolby TrueHD / Dolby Atmos Yes / No
- Dolby ProLogic Il / Dolby Surround Yes / No
- Dolby Height Virtualization No
- Auro 3D No
- IMAX Enhanced No
- Multichannel Stereo Yes
- Max Number of Processing (Preamp) Channels 5.1
Sound Enhancements
- Single Board Power Amplifier No
- Discrete Power Amplifier 5
- Copper Plated Chassis No
- Power Transformer: Toroidal / EI EI
- Current Feedback Topology No
- Hyper Dynamic Amplifier Modules (HDAM) No
- Pure Direct Yes
- High Grade Audio Components No
- Gold plated RCA terminals No
- Clock Jitter Reducer No
- Audyssey MultEQ
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC No
- Audyssey APP Support No
- Compressed Audio Enhancer: MDAX2 Yes
Network
- HEOS Multi-room and Streaming Yes
- Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
- Lossless formats FLAC / ALAC / WAV Yes / Yes / Yes
- DSD Audio Streaming up to DSD5.6
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
- AirPlay 2 Yes
- Internet radio TuneIn
- Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
- Amazon Prime Music* / Pandora* Yes / Yes
- Compatible with Remote APP for Smart Phones Android / iOS
- Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
- Ethernet Yes
- Wi-Fi Yes
- Bluetooth Yes

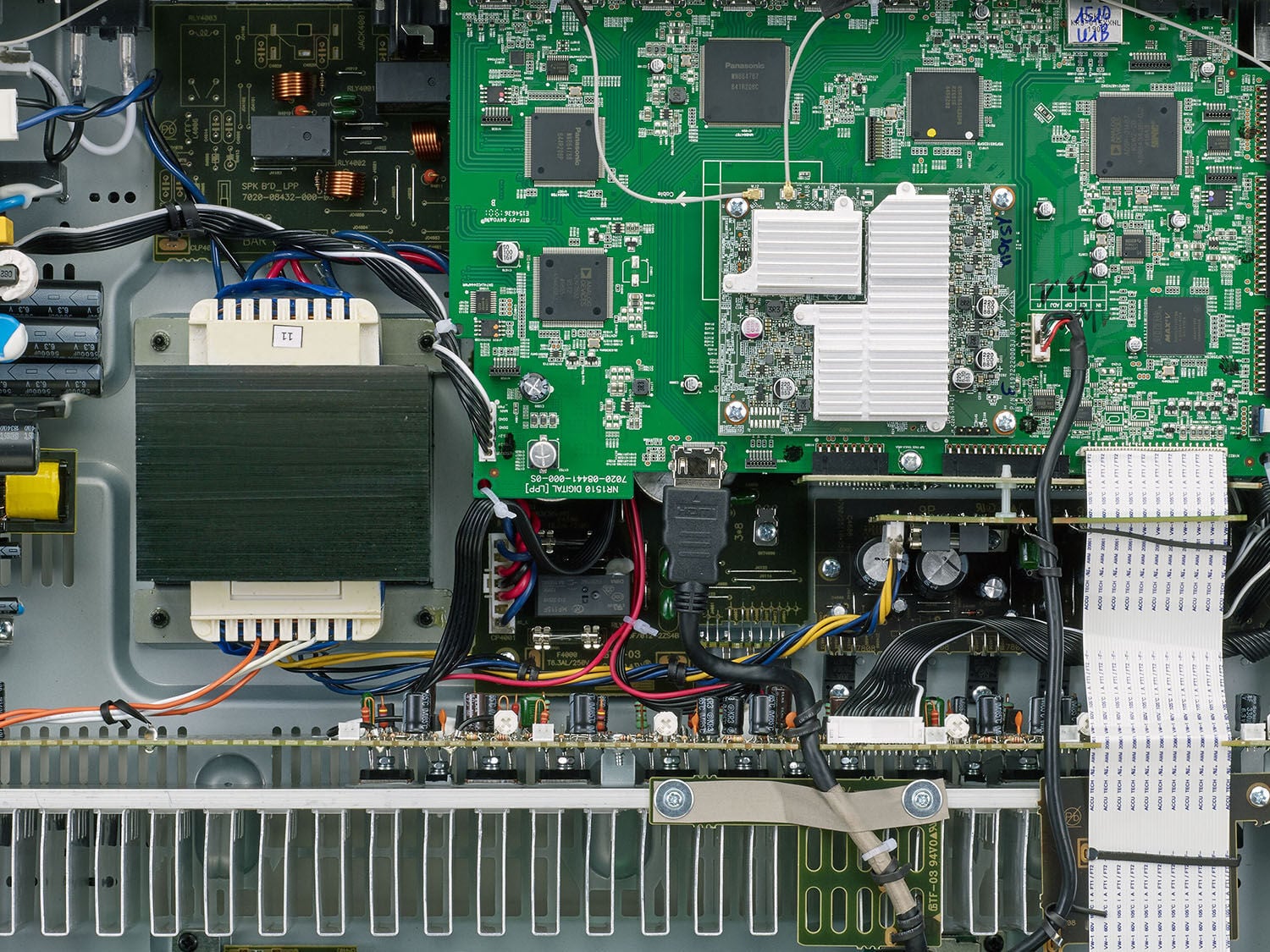

- Bluetooth Headphone transmission Yes (update)
HDMI
- HDMI Inputs: Back / Front 5 / 1
- HDCP2.2 Support Yes (2.3)
- HDMI Outputs: Main / Zone 1 / No
- Video Conversion Analog -> HDMI No
- Analog to HDMI Scaling No
- HDMI to HDMI Scaling No
- GUI Overlay on HDMI Yes
- HDMI: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
- Enhanced ARC Yes

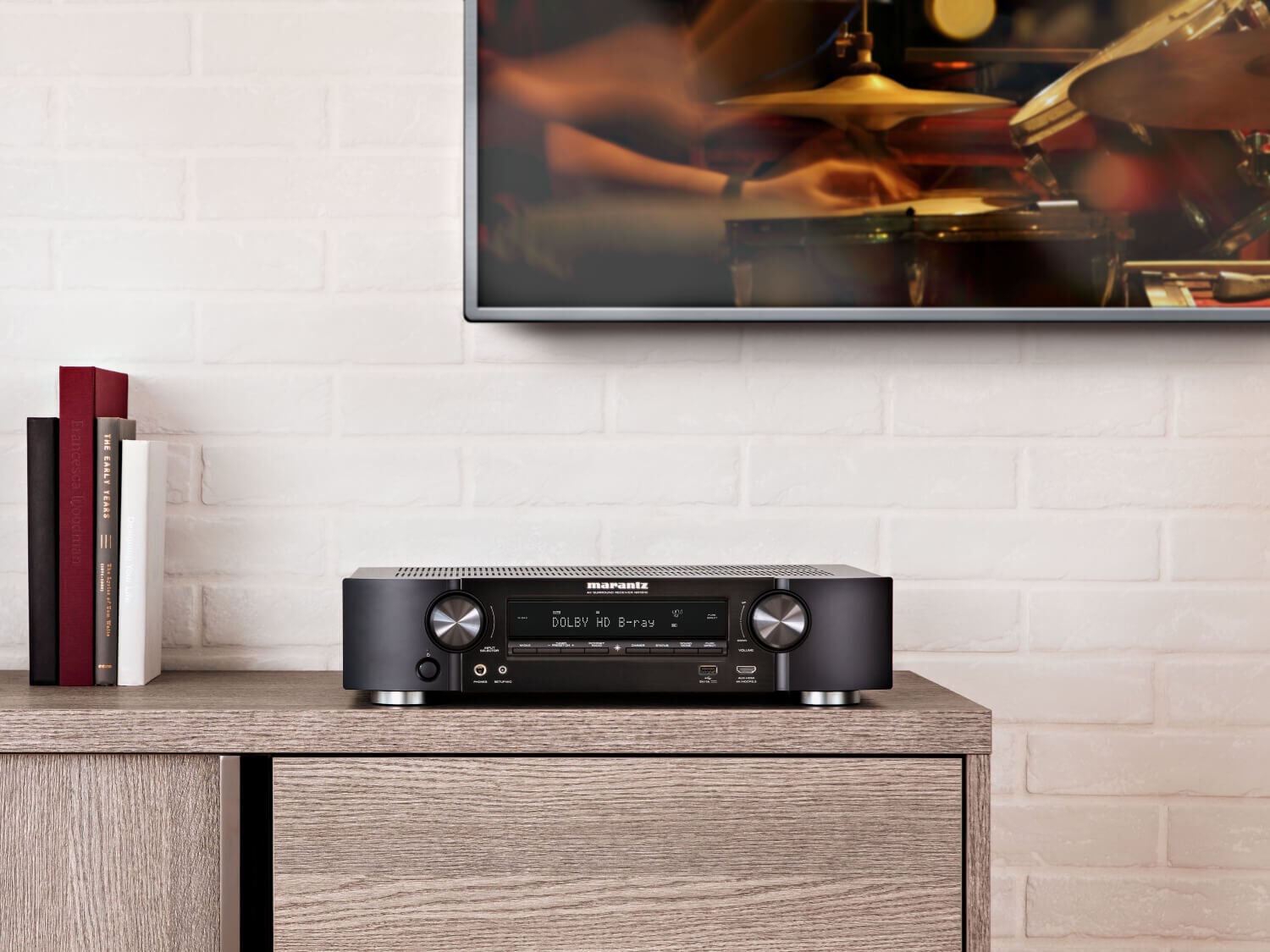

- HLG / Dolby Vision Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay Yes / No / No
- HDMI Pass-Through in Standby Mode Yes
- Picture Adjust / Noise Reduction No / No
- DSD Audio Capability No
Multi-Room CI
- HEOS Multi-Room Integrated Yes
- TV Sound grouping Yes
- Multi-Room Zones No
- Main room multichanel audio - Zone stereo downmix Yes
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout No / No
- Zone HDMI Output from HDMI Source No
- Webbrowser User Interface Yes
- Smart Remote Management Yes
- IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
- IR Flasher In No
- Marantz Remote Bus Yes
- DC Trigger Output No
Others
- Voice Control - Works with Amazon Alexa Yes
- Voice Control - Google Assist / Apple Siri Yes / Yes
- Voice Control - Microphone built-in No
- Auto Speaker Setup by Microphone Audyssey MultEQ
- FL Display 1 line
- Graphic User Interface - GUI Hybrid GUI
- ISF Certification No
- GUI Languages 9
- Setup Assistant Yes
- Smart Select Yes
- Firmware Update by Network / USB Yes / Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync No
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes

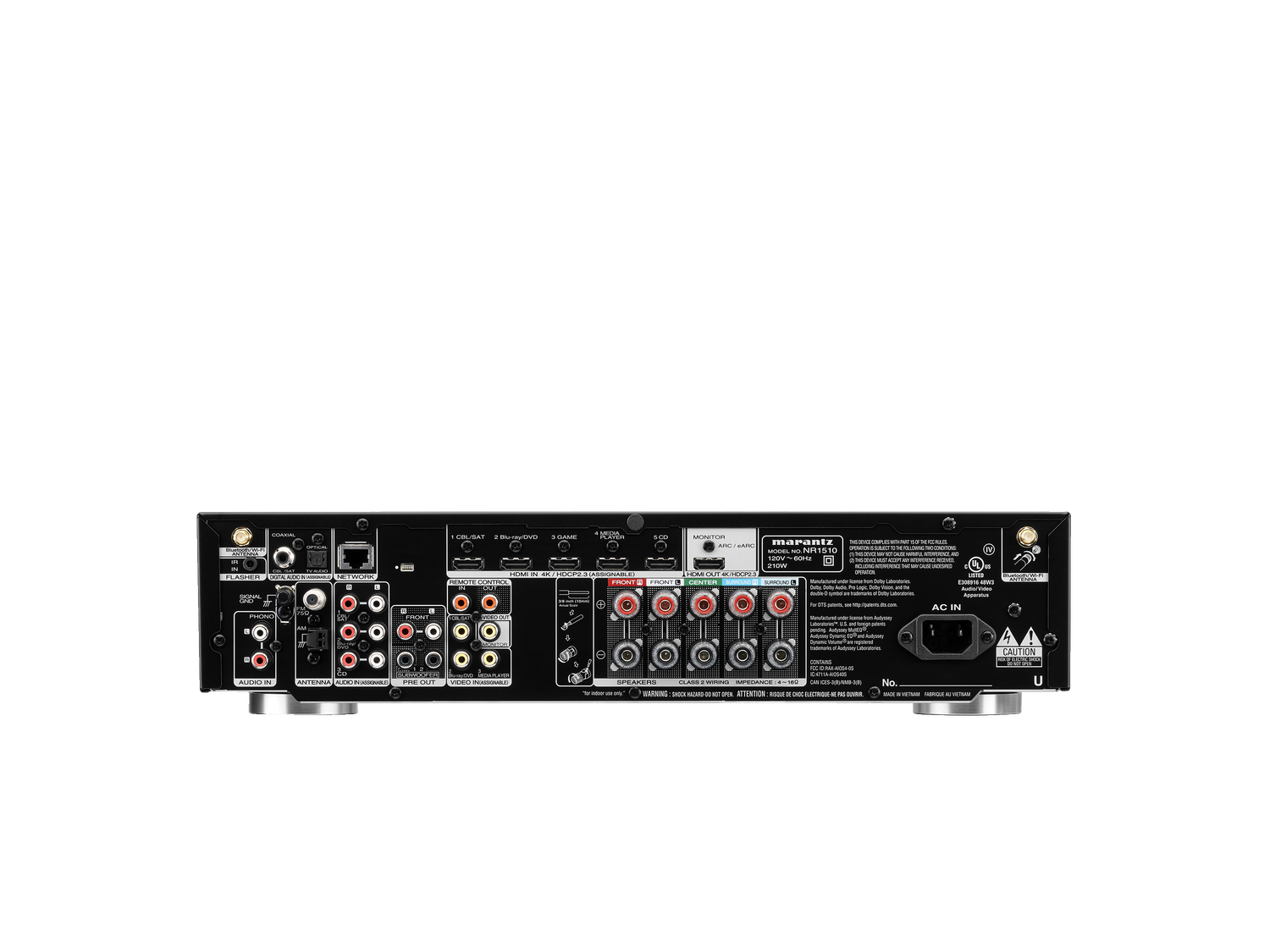

Inputs Outputs
- Composite In / Out 3 / 1
- Component In / Out No / No
- HDMI In / Out 5+1 / 1
- Multi-Room Video Out: Video / HDMI No / No
- Analogue In / Out 3 / No
- Phono (MM) In Yes
- Digital Inputs: Coaxial / Optical 1 / 1
- Multi-Room Out: analog / digital No / No
- Multichannel Pre Out Yes (2.2)
- Subwoofer Out 2
- 7.1 multichannel input No
- Speaker Terminal: Gold plated screw / regular screw No / Yes
- Number of Speaker Terminals 5
- Speaker A/B / Bi-amp drive / Multi-Room Speaker No
- Speaker A / B No
- Bi-amp drive No
- Multi-Room Speaker Terminal No
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
- USB Audio / Made for iPod / Works with iPhone Yes / AirPlay / AirPlay
- FM Tuner with RDS Yes
Specifications
- Number of poweramps 5
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) No
- Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 85 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 100 W
- 70% Guarantee No
General
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
- Metal Front Panel No
- System Remote Control RC040SR
- Pre-Programmed / Learnable / LCD Display No / No / No
- Power Consumption in W 210
- Power Consumption No-Sound (ECO on/off) in W No
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Control On Consumption in W 3.7
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 440 x 378 x 105
(440 x 378 x 175 )
( 440 x 368 x 105) - Weight in kg 8.2
- Carton Maximum Dimensions (W x D x H) in mm 520 x 491 x 184
- Carton Weight (inc. product) in kg 10.5
