Features
- Channels 2
- Current Feedback Topology o
- Full balanced circuitry architecture -
- Double Mono Power Amp construction -
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / o / -
- Digital in: USB-B / optical / coaxial / USB-A - /1 / 1 / 1
- Sample Rate digital In 192 kHz / 24-bit
- USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 / - / 192
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 -
- USB-B PCM sample rate -
- DAC chip ES9016K2M
- Asynchronous mode rear USB -
- Bit-perfect transmission -
- Ground isolator for DAC Mode operation -
- Tuner: DAB / DAB+ / FM (RDS) -
- Bluetooth / aptX / NFC o / - / -
- Streaming audio from PC o
- Wi-Fi / Wired LAN o / o
- Internet radio o
- AirPlay 2 o
- Roon Tested o
- Spotify Connect* / Tidal* / Deezer* / others * o / o / o / o
- Amazon Prime Music* / Pandora* o / -
- HEOS Multiroom and Streaming o
- Voice Control - Works with Amazon Alexa o
- Voice Control - Google Assist / Apple Siri o
- Voice Control - Microphone built-in -
- DSD-Audio network streaming o
- Lossy formats MP3 / WMA / AAC o / o / o
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF o / o / o / o / -
- Gapless Playback o
- Remote APP: iDevice / Android o / o
- Analog Mode -
- HDAM version SA3, SA2
- Power Transformer: Toroidal / El o / -
- High Grade Audio Components o
- Customised Components o
- Symmetric PCB Layout o
- Aluminium extrusion heat sink o
- Copper Plated Chassis -
- Balance / Bass / Treble / Loudness o / o / o / -
- Double Layerd Bottom Plates o
- Low Noise OLED display o
Others
- Marantz Musical Digital Filtering o
- Linear Drive Power Supply o
- Liniear volume control MUSES 72323
- BI-AMP and Multichannel option -
- Shottky diodes o
- Input buffer amp (all inputs / CD only) - / -
- System block shielding: Copper / metal / none - / o / -
- Low noise LCD display -
- Source Direct o
- Power Amp direct o
- 5mm aluminium top plate -

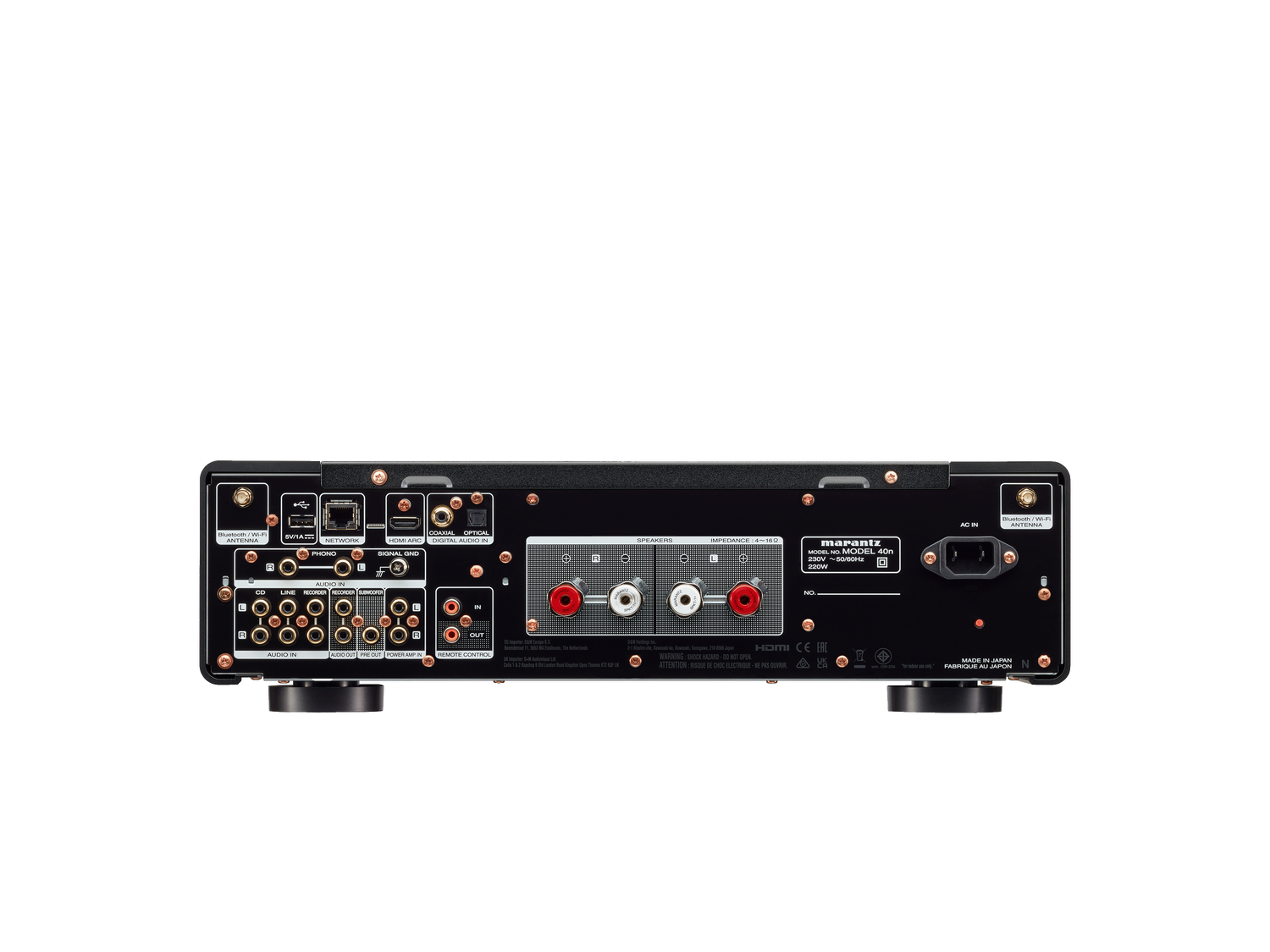

Inputs Outputs
- Audio Inputs 4
- Digital in: USB-B / optical / coaxial / USB-A - / 1 / 1 / 1
- Auto Power On by digital input signal o
- TV remote learning -
- Phono Input: MM / MC o / -
- Audio Outputs 1
- Balanced In / Out -
- Pre-out / Main-in subwoofer / -
- Power Amp Direct IN o
- HDMI: inputs / outputs 1 / -
- Gold Plated Cinch o
- Speaker A / B -
- Speaker Terminals Marantz SPKT-1+
- Number of terminals 2
- D-Bus o
- Floating Control Bus (3.5 mm mono jack x 2) -
- Headphone Out o
- Headphone Gain Control (low / mid / high) -
Specifications
- Power Output (8 / 4 Ohm RMS) 70 W / 100 W
- Frequency Response 5 Hz-100 kHz
- Total Harmonic Distortion 0.02 %
- Damping Factor 100<
- Input Sensitivity: MM 1.6 mV / 47 kOhm
- Input Sensitivity: MC -
- Signal to Noise Ratio: MM/MC 87 dB / -
- Input Sensitivity: High level 220 mV / 16 kOhm
- Input Sensitivity: Balanced High level -
- Signal to Noise Ratio: High level 113dB
- Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kOhm
- Signal to Noise Ratio: Power Amp Direct IN -
General
- Available Colors: Gold / Silver / Black / Silver-Gold - / - / o / o
- Metal Front Panel o
- Power Consumption in W 220
- Standby Consumption in W 0.3
- Auto Power off o
- Detachable Power Cable o
- Remote Control RC005PM
- System Remote Function o
- Maximum Dimensions (W x D x H) in mm 443 x 432 x 130
- Weight in kg 16.7
- Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
- Carton Weight (inc. product) in kg 19.6
