Eigenschappen
- Channels 2
- Current Feedback Topology Yes
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / Yes / -
- Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
- HDAM version SA3, SA2
- Power Transformer: Toroidal / El Yes / -
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout Yes
- Aluminium extrusion heat sink Yes
- Balance / Bass / Treble / Loudness Yes / Yes / Yes / -
Overige
- Linear Drive Power Supply Yes
- Liniear volume control Yes
- Schottky diodes Yes
- Input buffer amp (all inputs / CD only) - / -
- Solid Heat Sinks Yes
- System block shielding: Copper / metal / none none
- Bottom Plate triple
- Low noise OLED display Yes
- Source Direct Yes
- Power Amp direct Yes

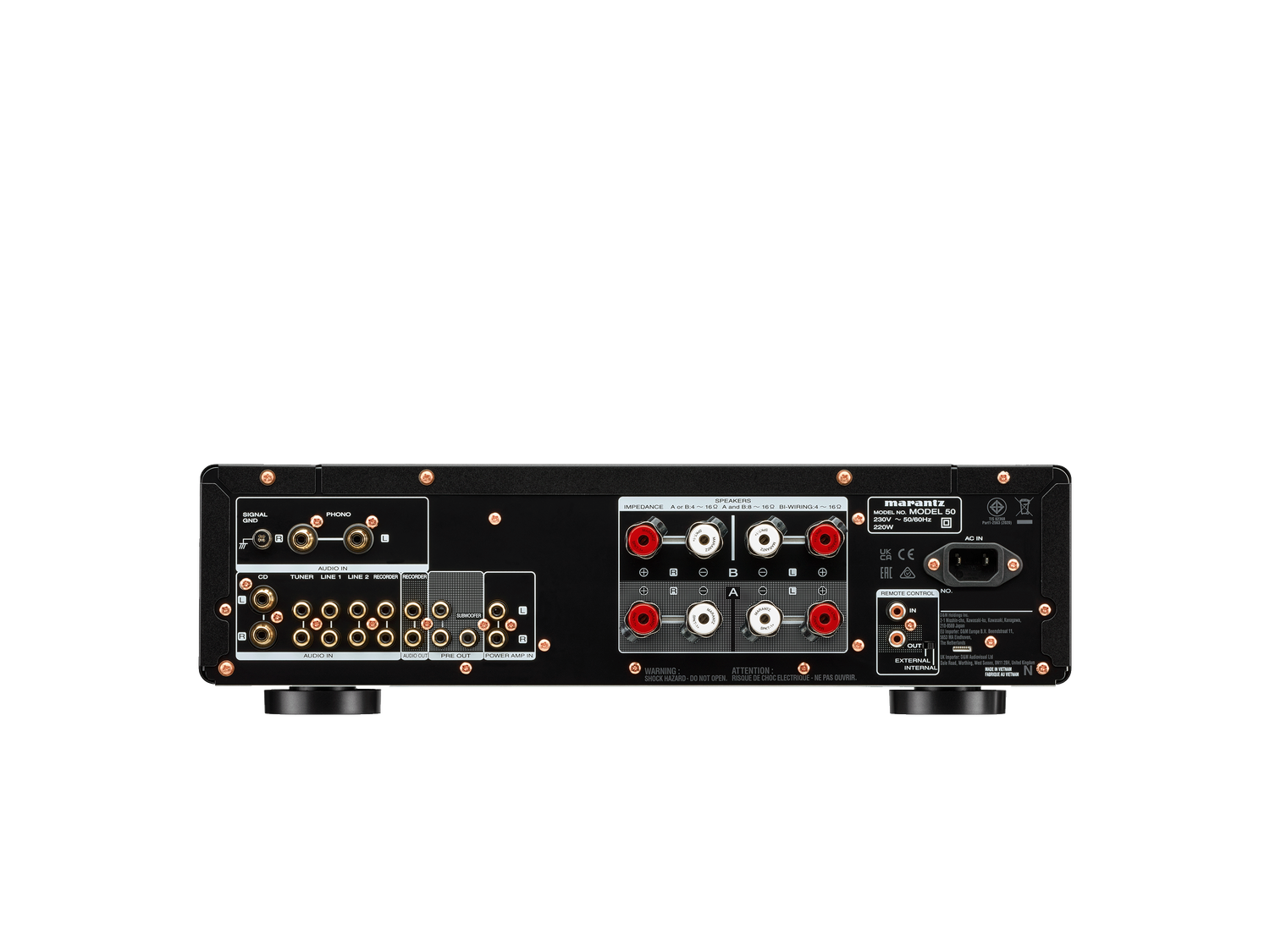

Ingangen en uitgangen
- Audio Inputs 6
- Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
- Phono Input: MM / MC Yes / -
- Audio Outputs 1
- Balanced In / Out - / -
- Pre-out / Main-in Yes + subwoofer / -
- Power Amp Direct IN Yes
- Gold Plated Cinch Yes
- Speaker A / B Yes
- Speaker Terminals Marantz SPKT-1+
- Number of terminals 4
- D-Bus Yes
- Headphone Out Yes
Specificaties
- Power Output (8 / 4 Ohm RMS) 70 W / 100 W
- Frequency Response 5 Hz–100 kHz
- Total Harmonic Distortion 0.02 %
- Damping Factor 100
- Input Sensitivity: MM 1.4 mV / 47 kΩ
- Signal to Noise Ratio: MM/MC 87 dB / -
- Input Sensitivity: High level 185 mV / 16 kΩ
- Signal to Noise Ratio: High level 116 dB (2 V input)
- Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ
- Signal to Noise Ratio: Power Amp Direct IN 125 dB
- Treble Control ± 10 dB at 15 kHz
- Bass Control ± 10 dB at 50 Hz
Algemeen
- Available Colors: Gold / Silver / Black / Silver-Gold - / - / Yes / Yes
- Metal Front Panel Yes
- Power Consumption in W 220
- Standby Consumption in W 0.3
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control RC003PMND
- System Remote Function Yes
- Maximum Dimensions (W x D x H) in mm 442 x 431 x 130
- Weight in kg 14.2
- Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255
- Carton Weight (inc. product) in kg 17.5
